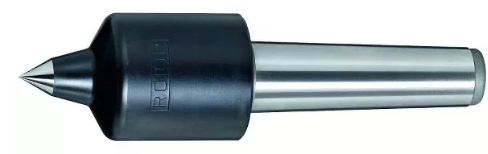

Speed Line – Type S-V
Rotor Tool AG Ltd is a Swiss-based company specialising in the design and manufacturing of high-precision tools, precision centres and pneumatic chucks.
Their live centres, also known as revolving tailstocks and foot stocks, are designed to improve the accuracy and efficiency of machining operations by providing a precise and stable centring point for workpieces.
Rotor Tool’s live centres can be used in various industries such as aerospace, automotive, medical, and energy, and are known for their high precision, durability, and versatility. They offer a range of models with different features and capabilities.
Speed-Line
Application
Precise and colour-coded live centres for high-speed turning.
Suitable for CNC-controlled and conventional turning and grinding machines.
Offers optimal protection against splash and dirt.
Design
- Ground tapers conform to DIN228AT3
- Through-hardened 60° point
- Mounted with one preloaded angular contact ball bearing and one deep-groove ball bearing
- Continuous lubrication using high-quality bearing grease
Sizes
- Morse tapers from No. 2 to 6
Models
- ST (Standard): for normal use
- SU (Super): for heavy-duty loads and low turning speeds
Types of Spindle

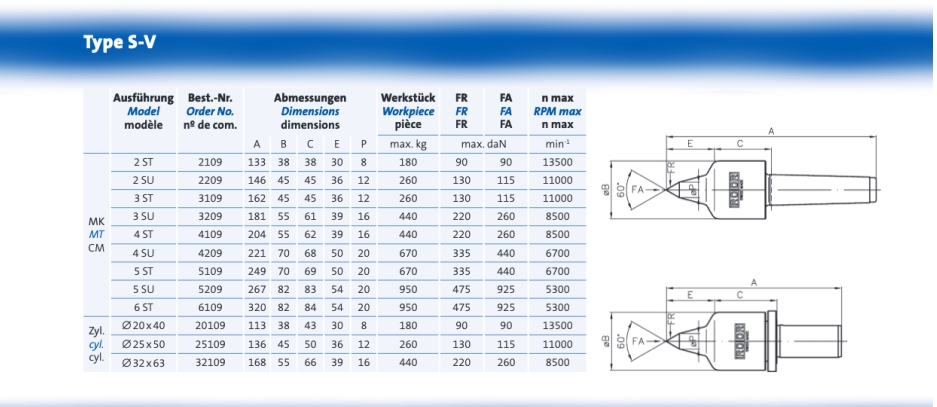

- Type S-V = extended point 60°
Loads
The weight ratings for workpieces are based on the assumption that the workpiece is supported between two centres, with each centre bearing a maximum of 50% of the total weight.
Additional loads – such as from imbalance or uneven weight distribution – are not permitted.
Maintenance
All ROTOR centres are manufactured with permanent lubrication.
These products are exclusively available within the UK from Thame Workholding, please get in touch for further information.
