Rotor Tool AG Ltd is a Swiss-based company specialising in the design and manufacturing of high-precision tools, precision centres and pneumatic chucks.

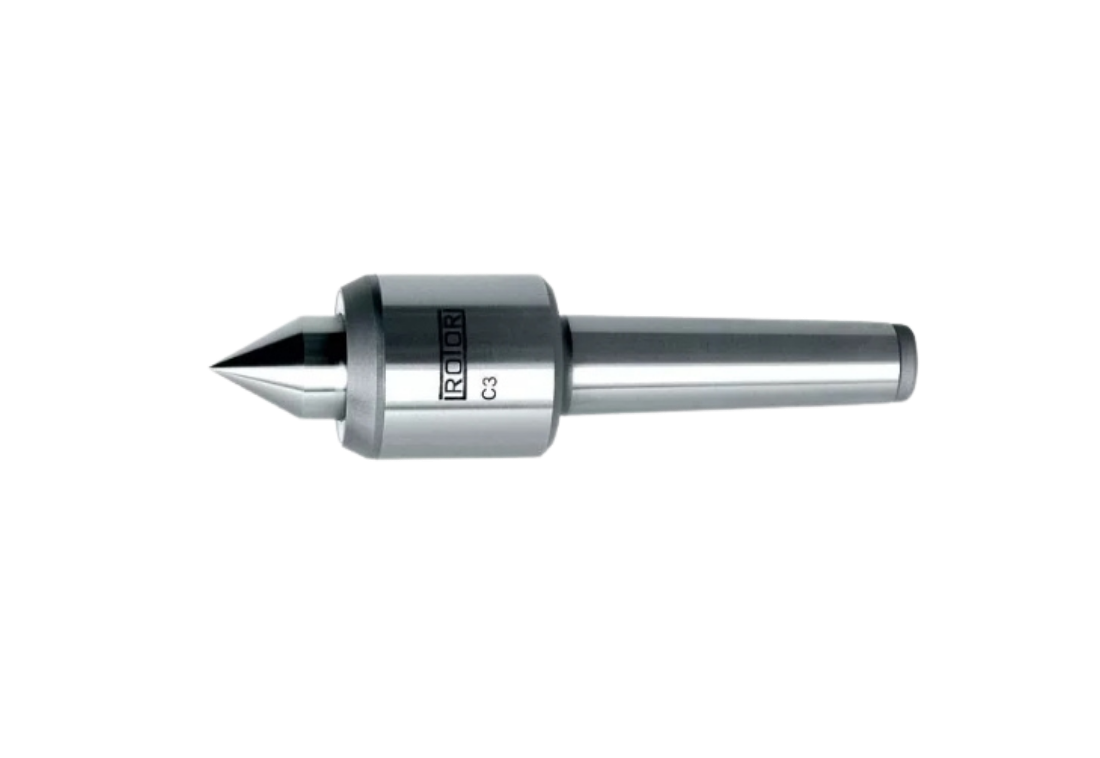

Their live centres, also known as revolving tailstocks and foot stocks, are designed to improve the accuracy and efficiency of machining operations by providing a precise and stable centring point for workpieces.
Rotor Tool’s live centres can be used in various industries such as aerospace, automotive, medical, and energy, and are known for their high precision, durability, and versatility. They offer a range of models with different features and capabilities.
Main-Line
- Available from MT 1 – MT 7 and metric Cones 80 and 100
- Accuracy 0.005 (5 microns)
- Surface hardened body and through-hardened Spindle
- Body models: SMALL (light pieces and higher turning rates) STANDARD; SUPER
- Lifetime Lubrication – no re-greasing necessary
- Over-Pressure Security through a disc spring

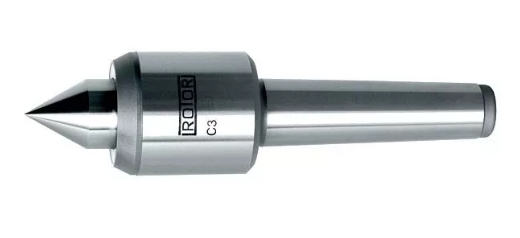

Type N Centres
Application
Reliable top-of-the-range for CNC and conventional lathes and grinding machines.
With over-pressure security through disc springs.
Design
− Surface-hardened body
− Ground tapers conform to DIN228AT3
− Through-hardened spindle made out of high-grade steel
− Spindle mounted by two needle bearings
− Thrust ball bearings to accommodate axial loads
− Over-pressure security through disc springs
− Reliable lip seal
− Continuous lubrication by a high-quality grease

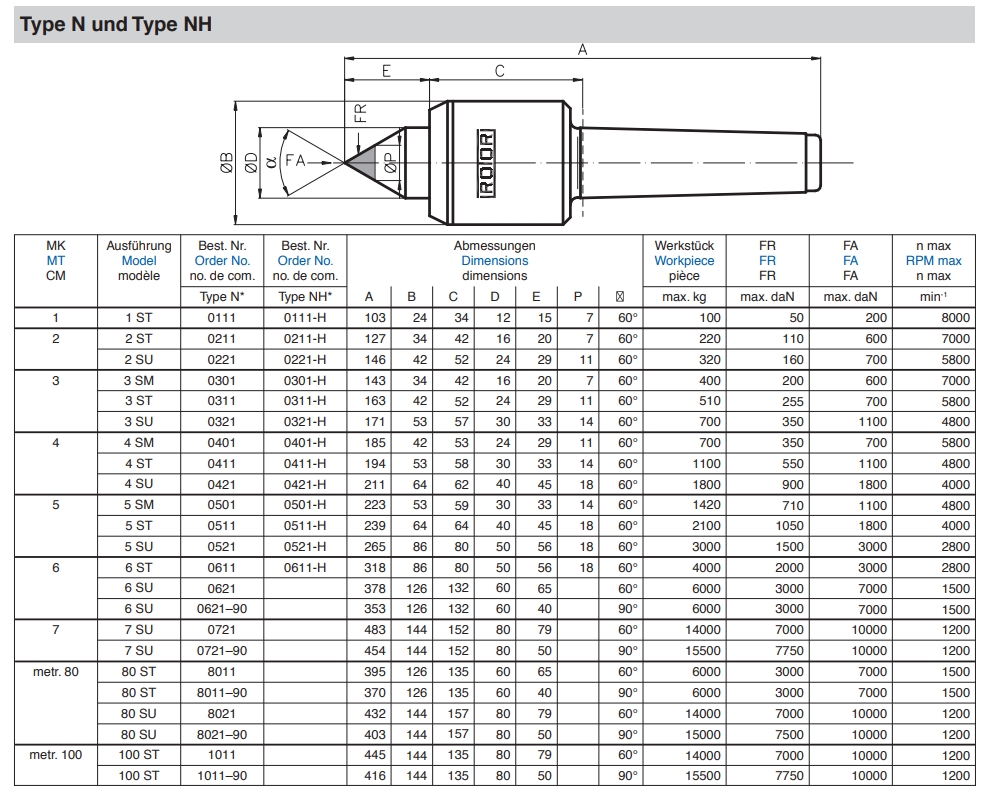

Sizes
− Morse Tapers no. 1 to 7
− Various metric tapers
Body and spindle models
− SM (small): small body, for light pieces and higher turning rates
− ST (standard): for normal loads
− SU (super): for heavy-duty loads and low turning rates
Type of spindle
− Type N/NH = standard point 60°
Loads
The weight indications for workpieces are based on the assumption that the workpieces are held between two Live-Centres and therefore one has to hold a maximum of 50% of the workpiece weight. Additional loads, for example, due to imbalance or due to uneven weight distribution, are not allowed.
Important
− Pay attention to the load diagram
− Live-centres with carbide tips may not be used with the maximum load.
Maintenance
All ROTOR Centres are manufactured with continuous lubrication.
Type N = hardened steel
These products are exclusively available within the UK from Thame Workholding, please get in touch for further information.
