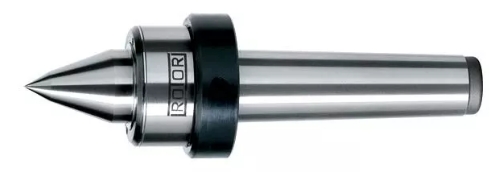

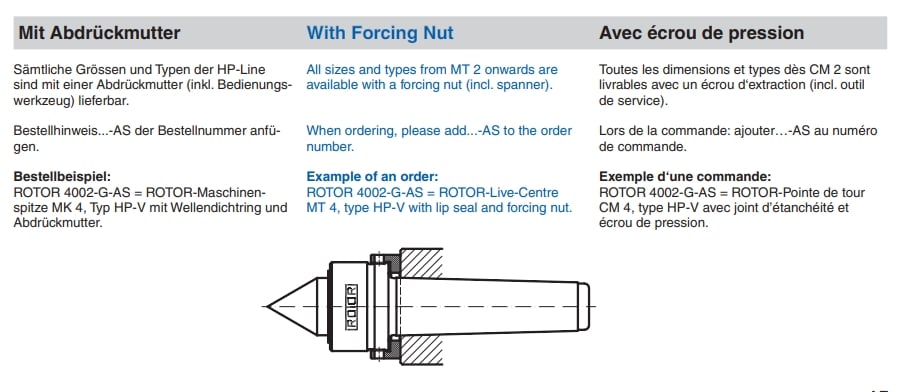

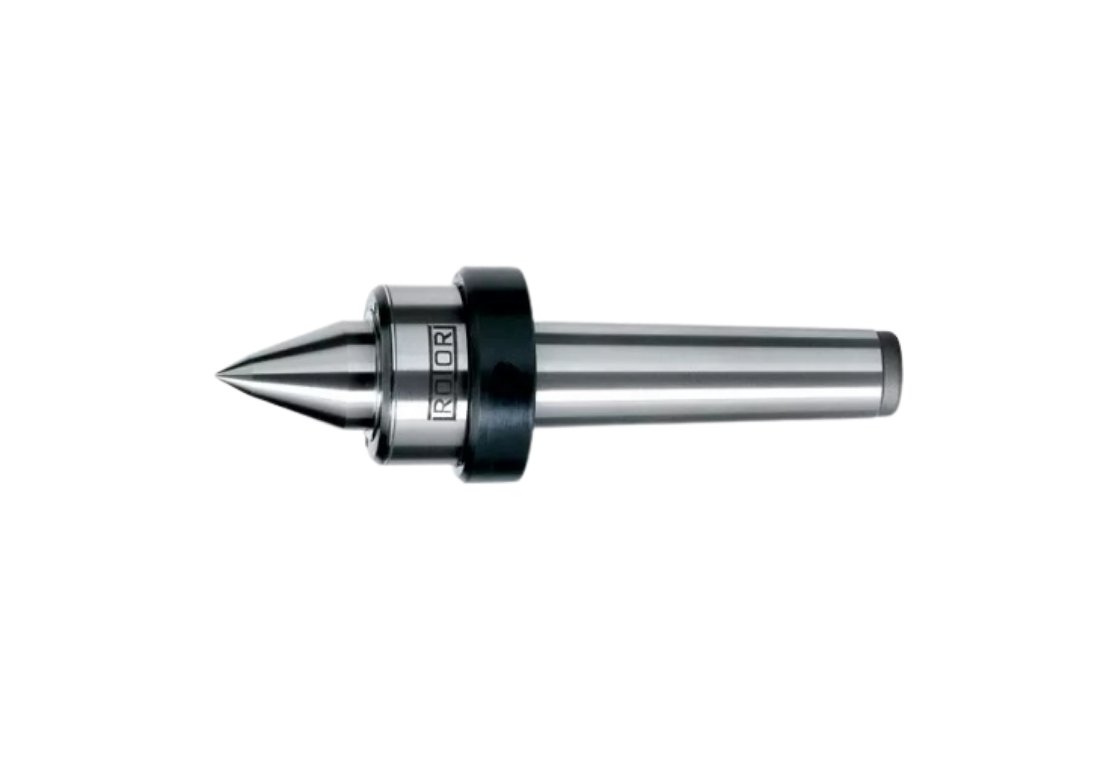

HP – Type HP – V – AS (with forcing nut)
Rotor Tool AG Ltd is a Swiss-based company specialising in the design and manufacturing of high-precision tools, precision centres and pneumatic chucks.
Their live centres, also known as revolving tailstocks and foot stocks, are designed to improve the accuracy and efficiency of machining operations by providing a precise and stable centring point for workpieces.
Rotor Tool’s live centres can be used in various industries such as aerospace, automotive, medical, and energy, and are known for their high precision, durability, and versatility. They offer a range of models with different features and capabilities.
HP-Line
Application
High-precision centres with a compact body for grinding and fine turning operations.

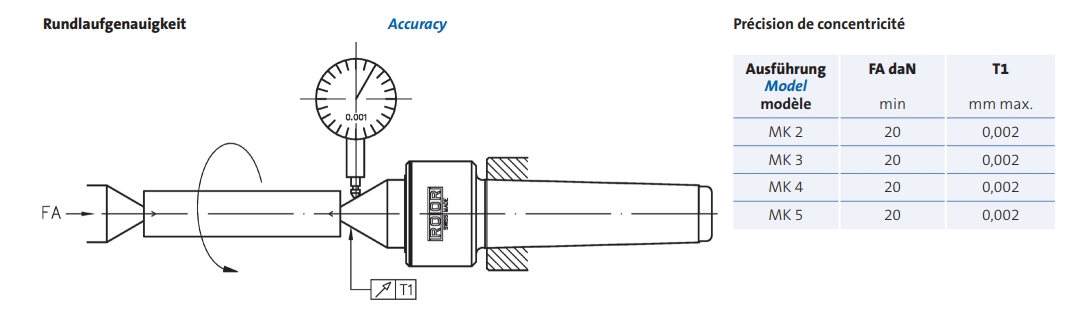

Runout accuracy of max. 0.002 mm.
Suitable for CNC-controlled and conventional turning and grinding machines.
Provides optimal protection against splash and dirt.
Design
- Hardened body
- Ground tapers conform to DIN228AT3
- Through-hardened 60° spindle made from high-grade steel
- Spindle mounted with a taper roller bearing and a needle roller bearing
- Seal available as either lip seal (G) or labyrinth seal (LAB)
- Continuous lubrication using high-quality bearing grease
Sizes
- Morse tapers from No. 2 to 5
Spindle Types

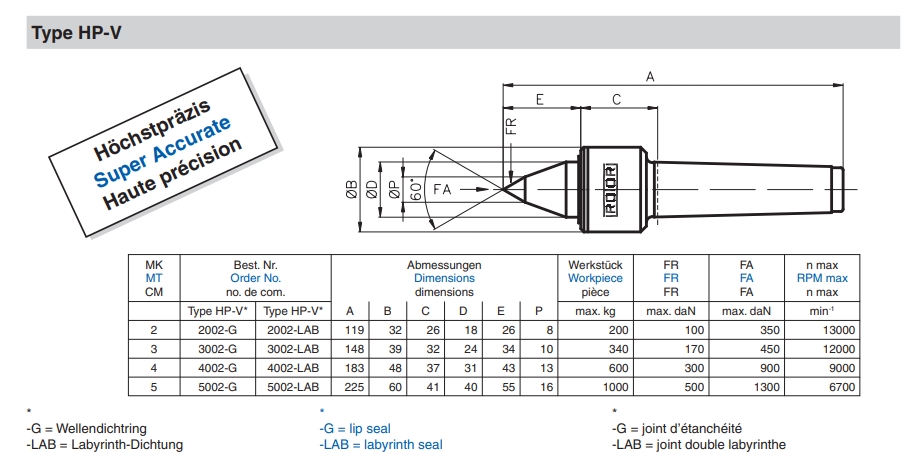

- Type HPV = extended point 60°
Loads
The weight ratings for workpieces are based on the assumption that the workpiece is supported between two centres, with each centre carrying a maximum of 50% of the total weight.
Additional loads—such as those caused by imbalance or uneven weight distribution—are not permitted.
Important
Please refer to the load diagram on page 17 of the catalogue below.
Maintenance
All ROTOR centres are manufactured with permanent lubrication.
These products are exclusively available within the UK from Thame Workholding, please get in touch for further information.
