Additional information
| Weight | 26.7 kg |
|---|---|
| Dimensions | 192 × 247 × 116 cm |

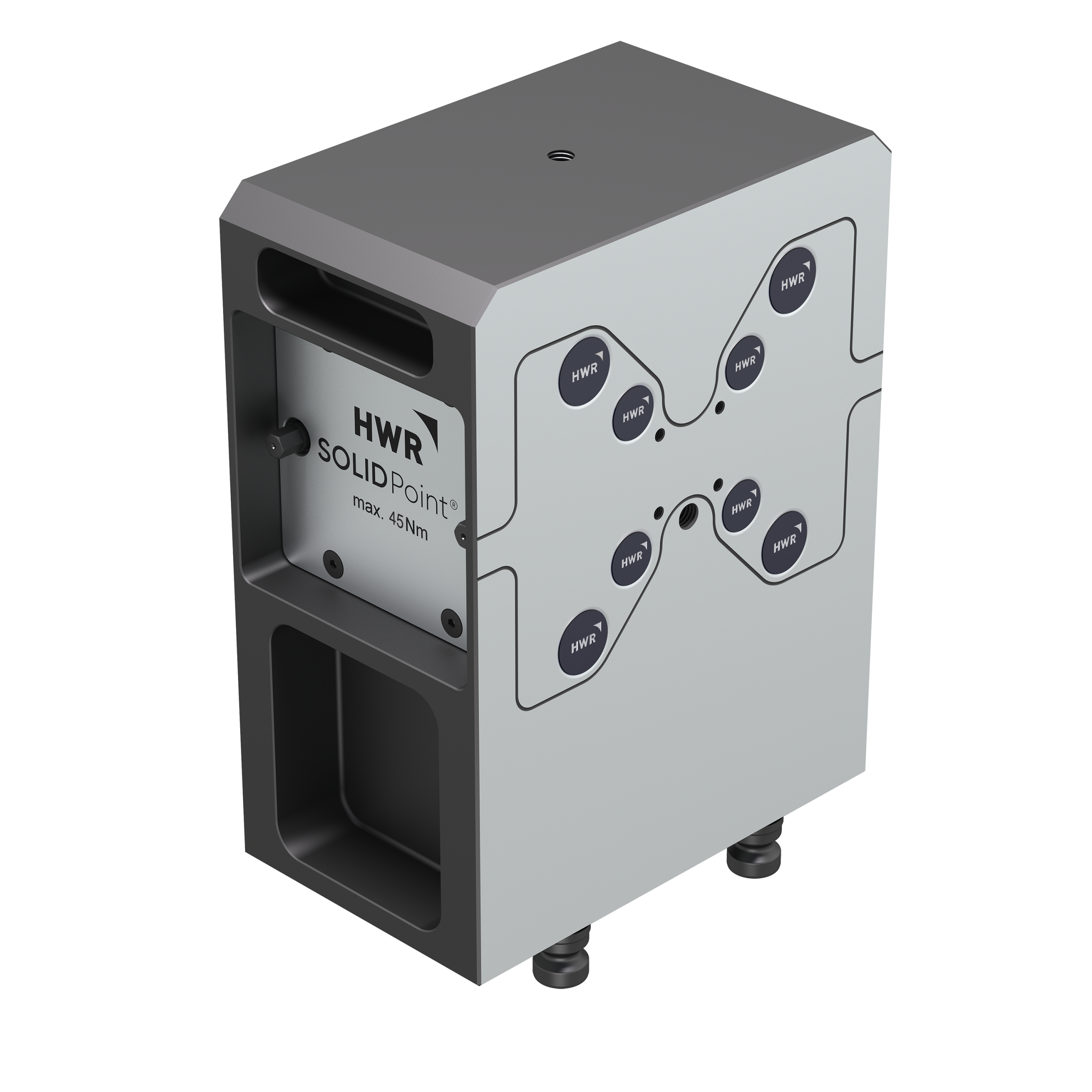

HWR SOLIDPoint Zero point Twin Base 661100
The HWR SOLIDPoint Zero point Twin Base mechanism is ingeniously simple with 3 moving parts and with the 96 and 52 combination grid in one plate has set a new standard for zero point clamping
£2,138.40 ex VATAvailable on back-order
Share:
Base dimension: 192 x 247 x 116mm
Zero point system 96 / 52
Zero point stud: 20 / 16 mm
Suitable vice: 125 / 77 / 46
Max. tightening torque: 45Nm
Holding force: 60kN
Accuracy: 0.005mm
Weight: 26.7kg
Wrench size: 8mm
Centering accuracy: +/- 0.02mm
