Additional information
| Weight | 6.8 kg |
|---|---|
| Dimensions | 192 × 156 × 60 cm |

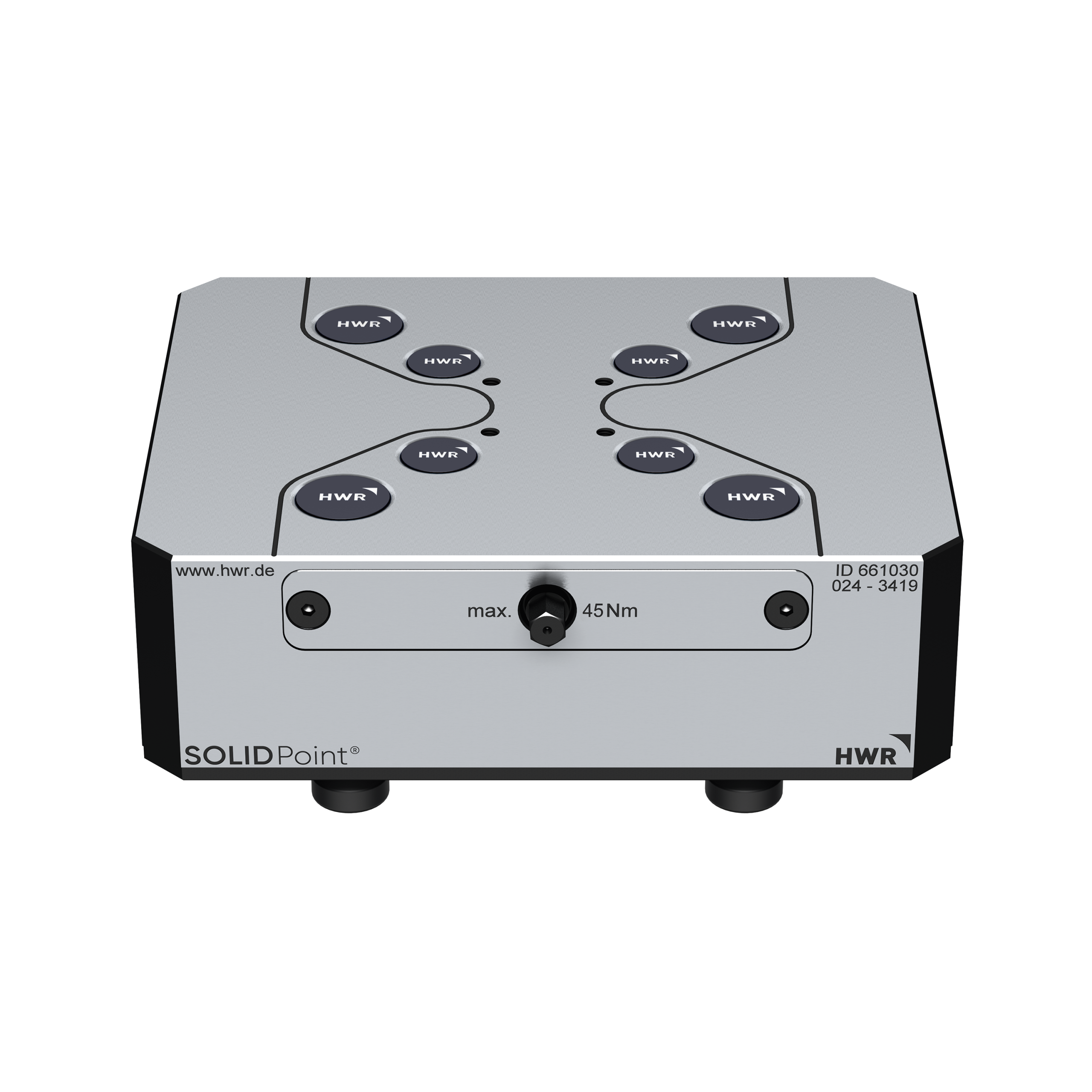

HWR SOLIDPoint Zero point Riser 661030
The HWR SOLIDPoint Zero point Riser mechanism is ingeniously simple with 3 moving parts and with the 96 and 52 combination grid in one plate has set a new standard for zero point clamping
Compatible with 45406
£1,290.60 ex VATIn stock (can be backordered)
Share:
Riser dimension: 192 x 156 x 60mm
Zero point system 96 / 52
Zero point stud: 20 / 16 mm
Suitable vice: 125 / 77 / 46
Max. tightening torque: 45Nm
Holding force: 60kN
Accuracy: 0.005mm
Weight: 6.8kg
Wrench size: 8mm
Centering accuracy: +/- 0.02mm
