Additional information
| Weight | 4.3 kg |
|---|

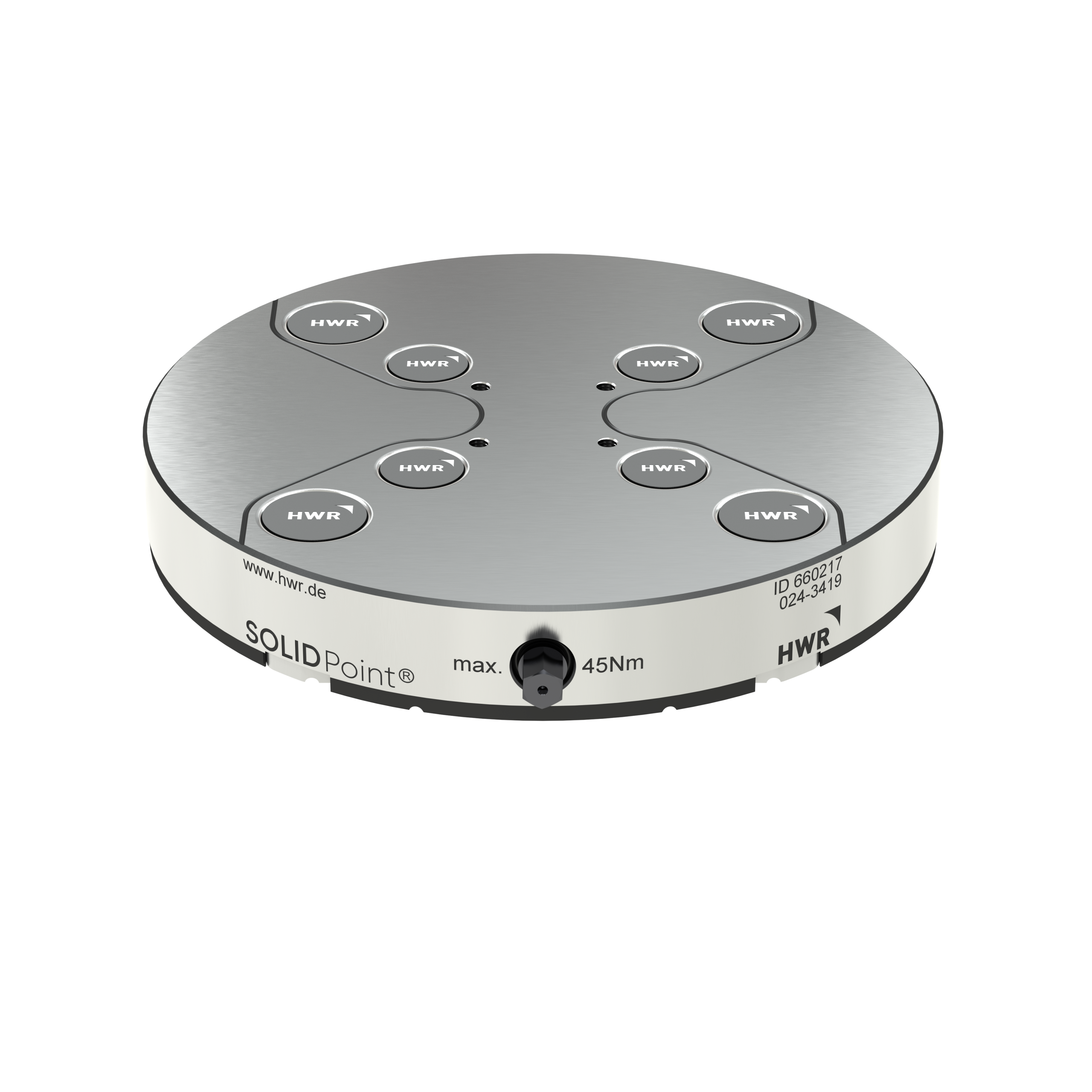

HWR SOLIDPoint Zero point plate 660217
The HWR SOLIDPoint zero point plate mechanism is ingeniously simple with 3 moving parts and with the 96 and 52 combination grid in one plate has set a new standard for zero point clamping
£761.40 ex VATAvailable on back-order
Share:
Plate dimension: Ø 176 x 27mm
Zero point system 96 / 52
Zero point stud: 20 / 16 mm
Suitable vice: 125 / 77 / 46
Max. tightening torque: 45Nm
Holding force: 60kN
Accuracy: 0.005mm
Weight: 4.3kg
Wrench size: 8mm
Centering accuracy: +/- 0.02mm
