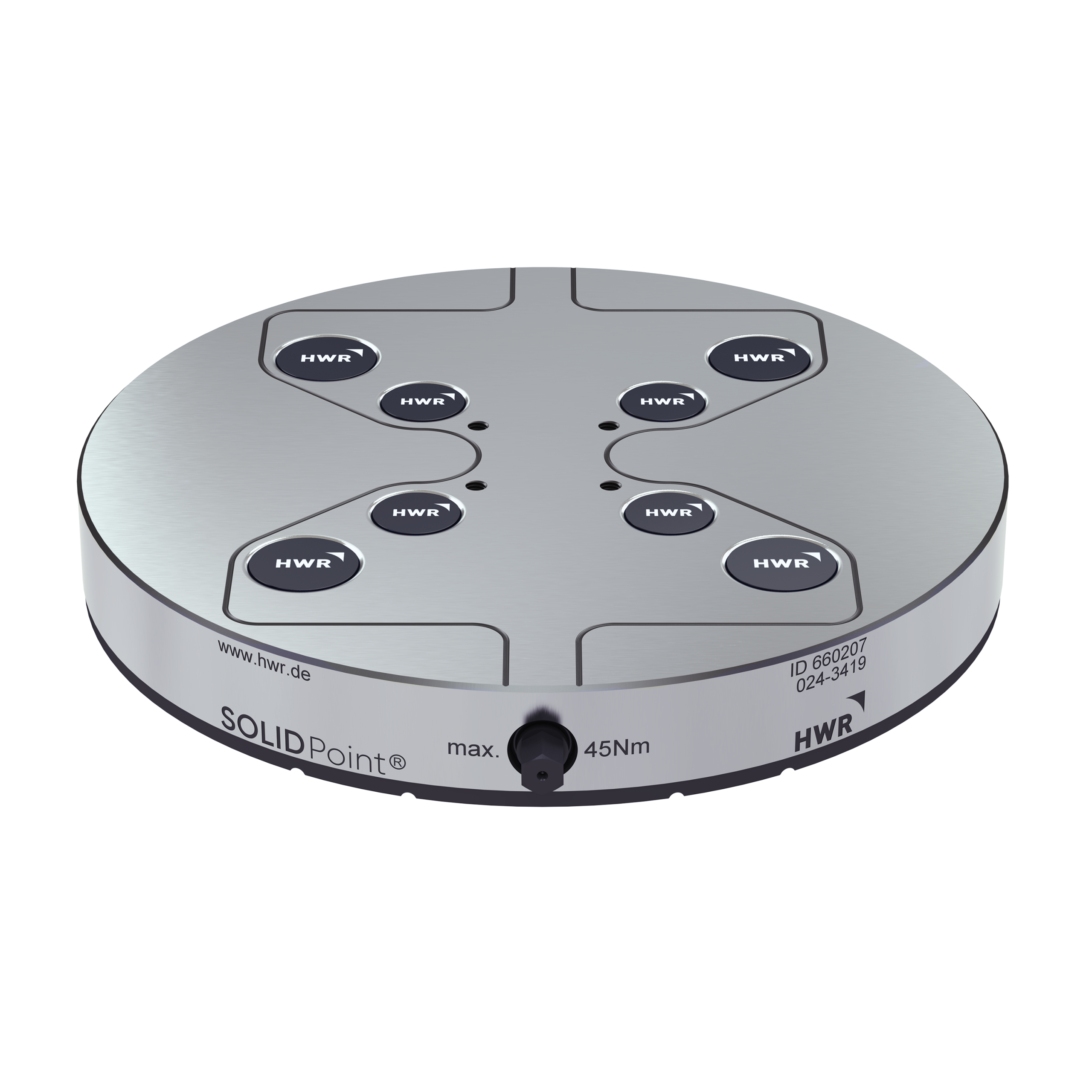

HWR SOLIDPoint Zero point plate 660207
The HWR SOLIDPoint mechanism is ingeniously simple with 3 moving parts and with the 96 and 52 combination grid in one plate has set a new standard for zero point clamping
Compatible with 45820
£853.20 ex VATIn stock (can be backordered)
Share:
Plate dimension: Ø 196 x 27mm
Zero point system 96 / 52
Zero point stud: 20 / 16 mm
Suitable vice: 125 /77 / 46
Max. tightening torque: 45Nm
Holding force: 60kN
Accuracy: 0.005mm
weight: 6kg
Wrench size: 8mm
Centering accuracy: +/- 0.02mm
