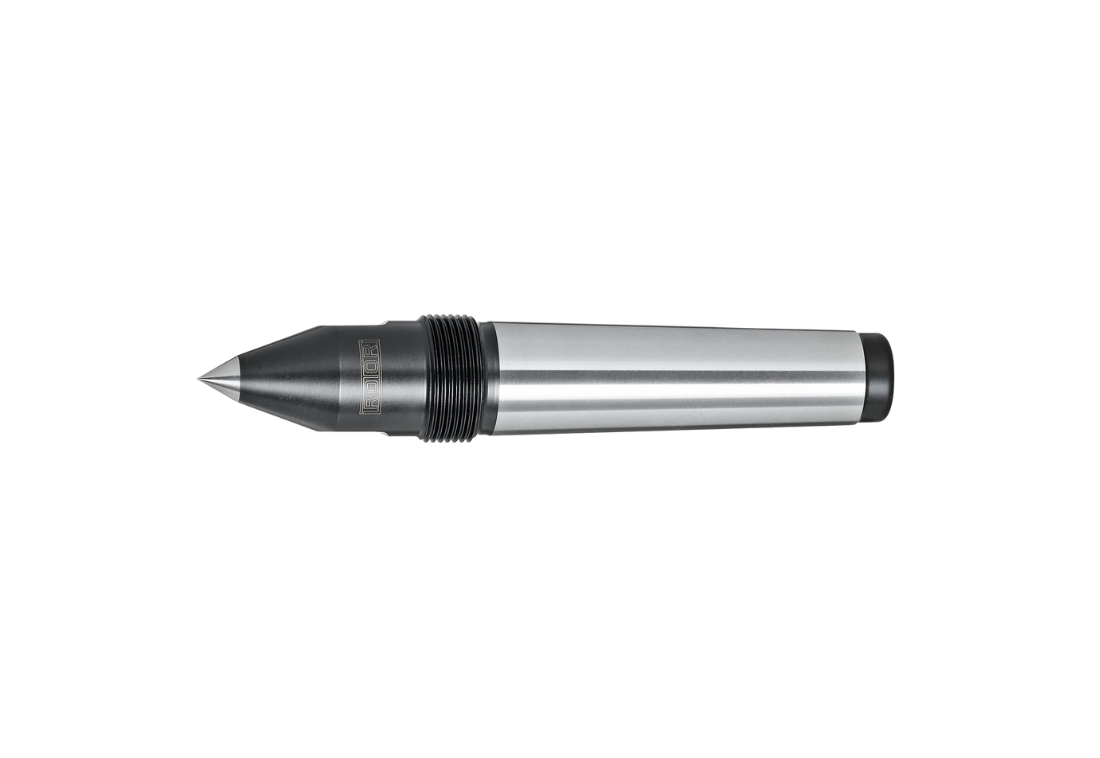

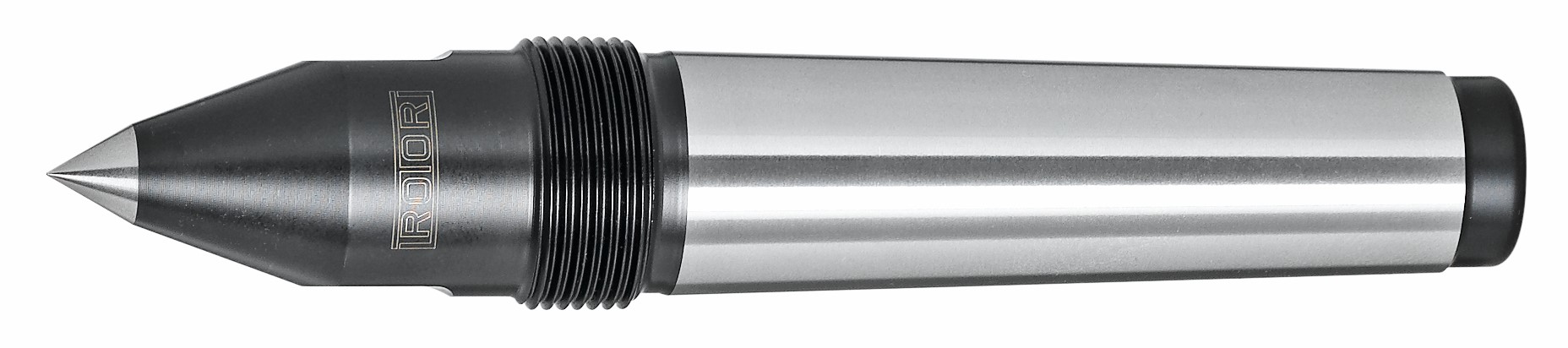

Hardened Steel – Type VF
Rotor Tool AG is a Swiss company, specialising in the development and manufacture of high-quality, high-precision tools.
Their range of Dead centres provide outstanding support to long or slender workpieces between the headstock and tailstock
Application
Dead centres with thread and spanner flat for rotating tailstock sleeves.
Technical Specifications
- Dimensions conform to DIN807 and ROTOR standard
- Concentricity tolerance <0.003mm
- Tolerance of the point 60° 0/+0.15°
- Ground taper to DIN228AT3
Material
High-grade steel, through hardened.
Without forcing nut; to be ordered separately

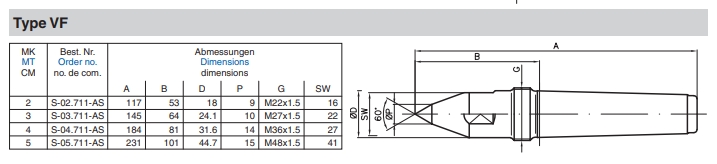

Hardened Steel – Type VF Specs
These products are exclusively available within the UK from Thame Workholding, please get in touch for further information.
rotor-broschuere-a4-p20.pdf (rotortool.com) Date Sheet
2020-2-rot-broschuere-web.pdf (rotortool.com) Full Brochure
