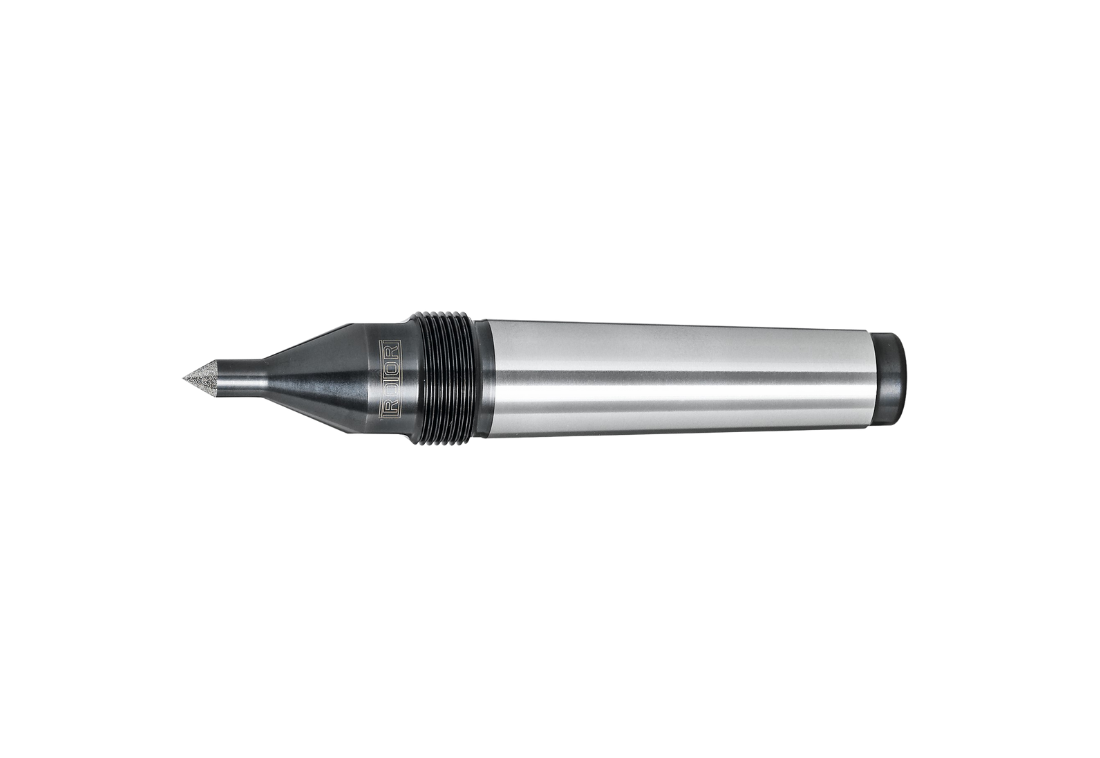

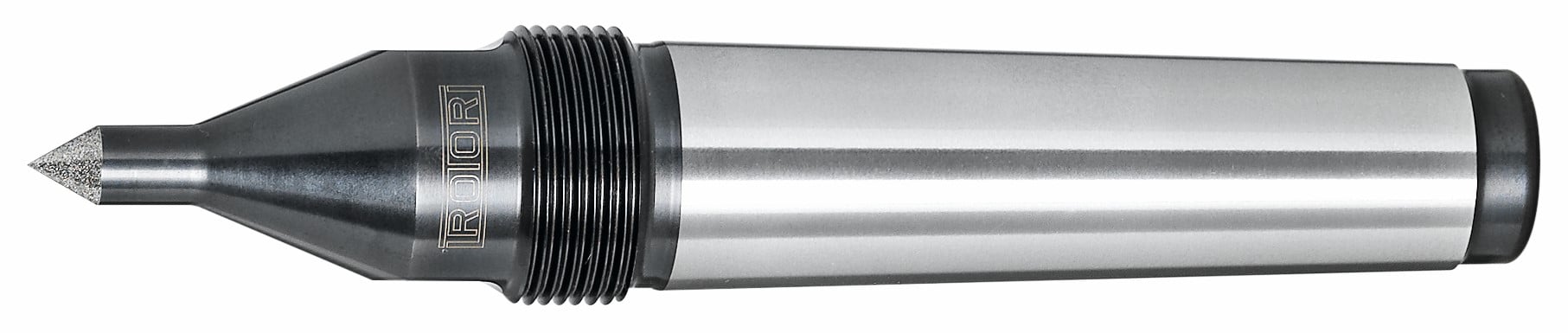

Dead Centres Diamond Coated 60° Point – Type LFD

Rotor Tool AG is a Swiss company, specialising in the development and manufacture of high-quality, high-precision tools.

Their range of Dead centres provide outstanding support to long or slender workpieces between the headstock and tailstock

Diamond Coated

To machine hardened workpieces between centres.
To take up over the workpiece centre, choose centre points of at least ≥4×2mm.
Concentricity of the machined area to the centre <0.015mm.
On the opposite side, a highly accurate live centre is recommended.

Application
Dead centres with thread and spanner flat for rotating tailstock sleeves.

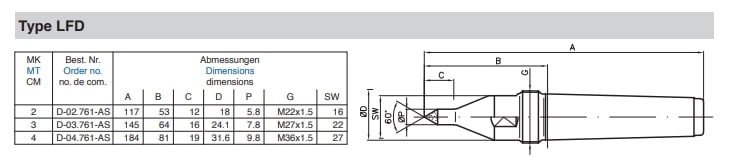

Technical Specifications

• Dimensions conform to DIN807 and ROTOR standard
• Concentricity tolerance <0.003mm
• Tolerance of the point 60° 0/+0.15°
• Ground taper to DIN228AT3

Material
High-grade steel, through hardened.
Without forcing nut; to be ordered separately
